CRS-170A L-Band 1:1 Redundancy Switch Revision 3

Cables and Connections MN/CRS170A.IOM

4.4.2.3 OC-3 (CDI-50) Interface Kits: KT/12585 (Single-Mode) or KT/12584

(Multi-Mode)

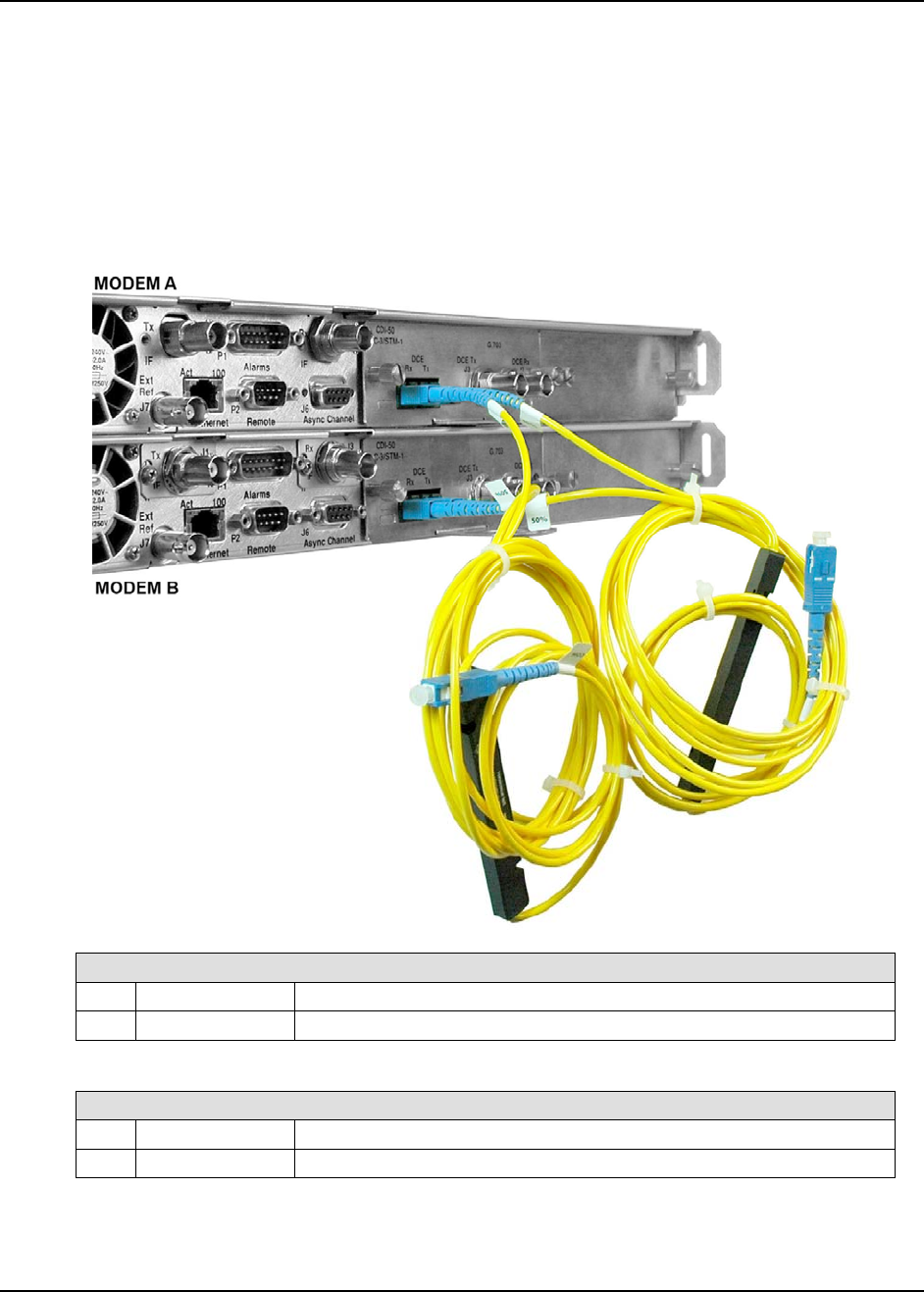

Figure 4-23 depicts a CDM-700 1:1 modem configuration with installation of one KT/12585 OC-3

Single-Mode Interface Kit in Slot 1(only) and Slot 2 empty.

Multi-Mode configurations use the KT/12584 OC-3 Multi-Mode Interface kit. Mode configuration

is easily distinguished by the color of the cables included in the kit; for Single-Mode configurations,

yellow cabling is used as shown in Figure 4-23, whereas a Multi-Mode configuration (not shown)

features orange cabling.

KT/12585 OC-3 Single-Mode (CDI-50) Interface Kit

QTY Part No. Description

2 PP/CPS2A12501 Cable Assy – RoHS-Compliant, Optical Coupler, SC/UPC Connectors

KT/12584 OC-3 Multi-Mode (CDI-50) Interface Kit

QTY Part No. Description

2 PP/CPM6A1250 Cable Assy – RoHS-Compliant, Optical Coupler, SC/UPC Connectors

Figure 4-23. CDM-700 OC-3 1:1 Example (Single-Mode shown)

4–21
