CRS-170A L-Band 1:1 Redundancy Switch Revision 3

Cables and Connections MN/CRS170A.IOM

ITEM QTY Part No. Description

1 4 CA/6357-4 Cable – RoHS-Compliant Cable, IF Type ‘N’, 50Ω, 4’

2 2 CA/WR9378-4 Control Cable – Universal, DB-9M, 4’

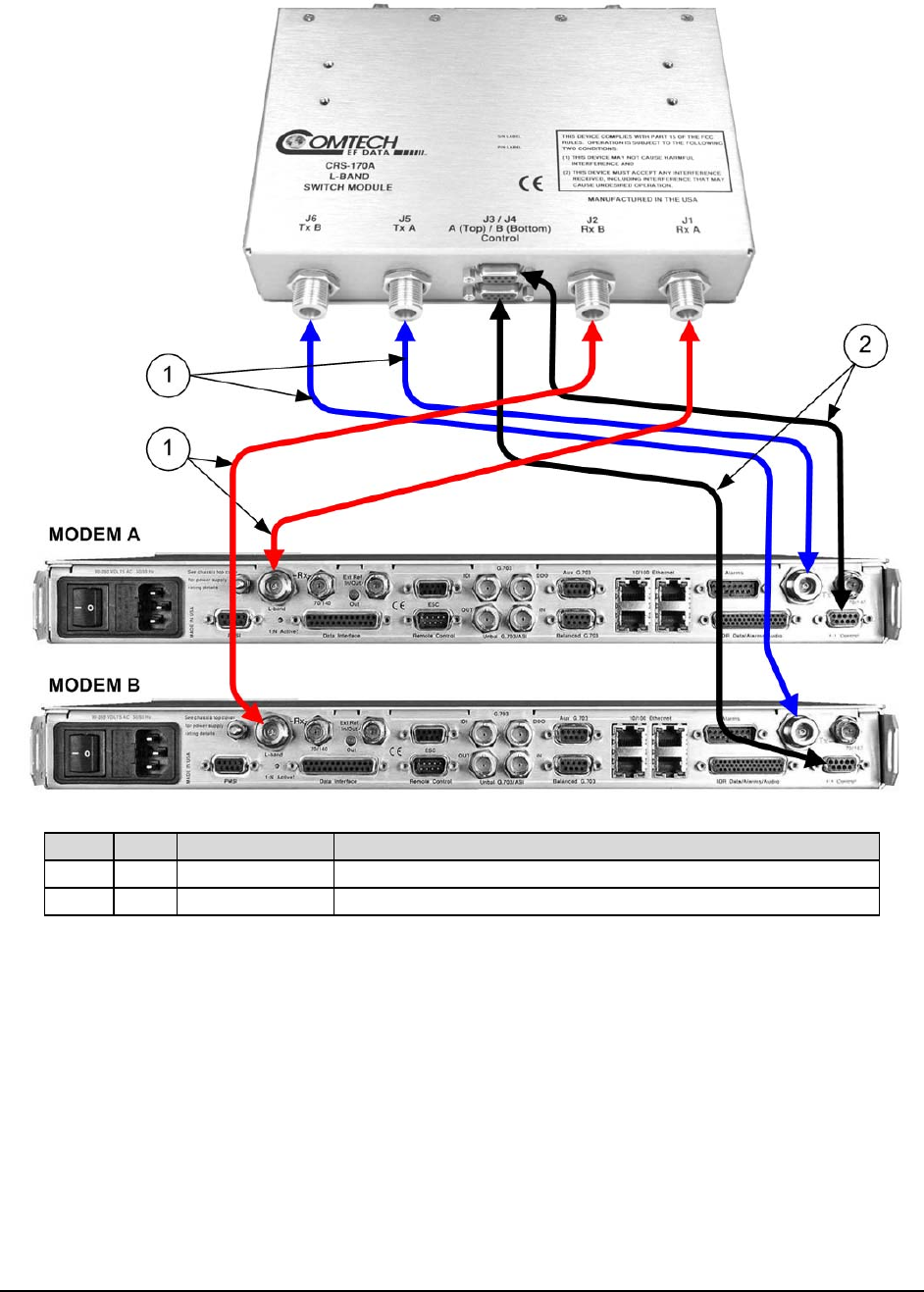

Figure 4-1. CDM-625 Basic Modem-to-Switch Connection

4.2.3 Data Interface Connection

In addition to the basic switch-to-modem cabling shown previously, there are a number of data

interface configurations available with the CDM-625. The block diagram shown in Figure 4-2 is

typical for the examples shown in Sects. 4.2.3.1 through 4.2.3.9.

With the exception of the 10/100 Ethernet interface configuration shown in Sect. 4.2.3.10 –

where customer-supplied cables are utilized – one cable/component set (see examples for

specified quantities) per 1:1 modem pair is required per user interface.

4–3
