CRS-170A L-Band 1:1 Redundancy Switch Revision 3
Cables and Connections MN/CRS170A.IOM
4.2.3.9 10/100 Ethernet Interface Example

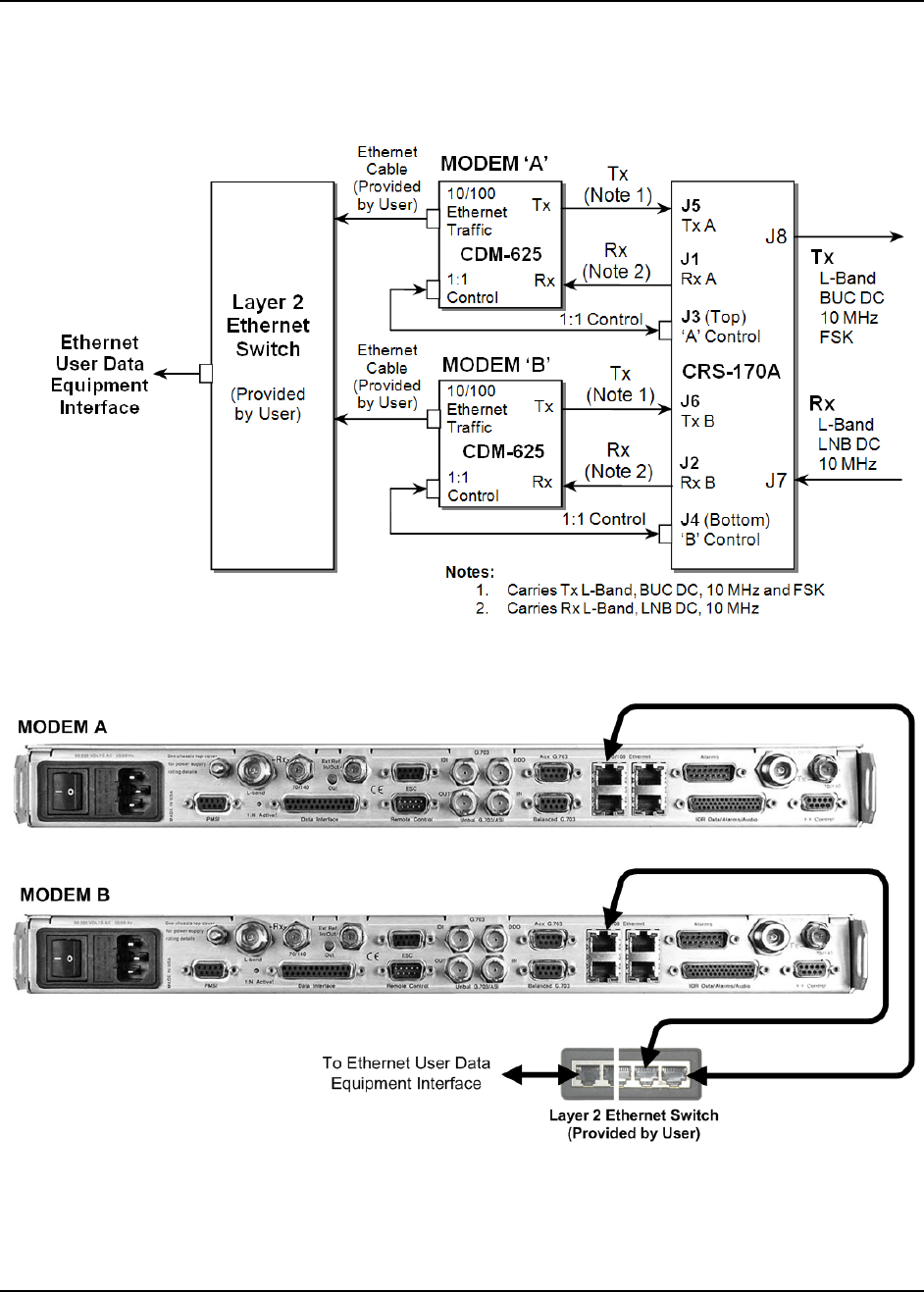

Figure 4-11 shows a block diagram and cabling example of a CDM-625 1:1 modem configuration
using the 10/100 Ethernet interface. Direct connection is made via a single RJ-45 port using a
customer-supplied Ethernet cable, so no cables or kit is required.
CDM-625 Block Diagram: 10/100 Ethernet Interface
Figure 4-11. CDM-625 10/100 Ethernet 1:1 Example
4–9
