CRS-170A L-Band 1:1 Redundancy Switch Revision 3

Cables and Connections MN/CRS170A.IOM

4.2.3.4 Quad E1 Interface Example

QTY Part No. Description

A/R CA-0000071 Cable – 1:1 ‘Y’ Splitter, (2X) DB-9M Æ DB-9F, 8”

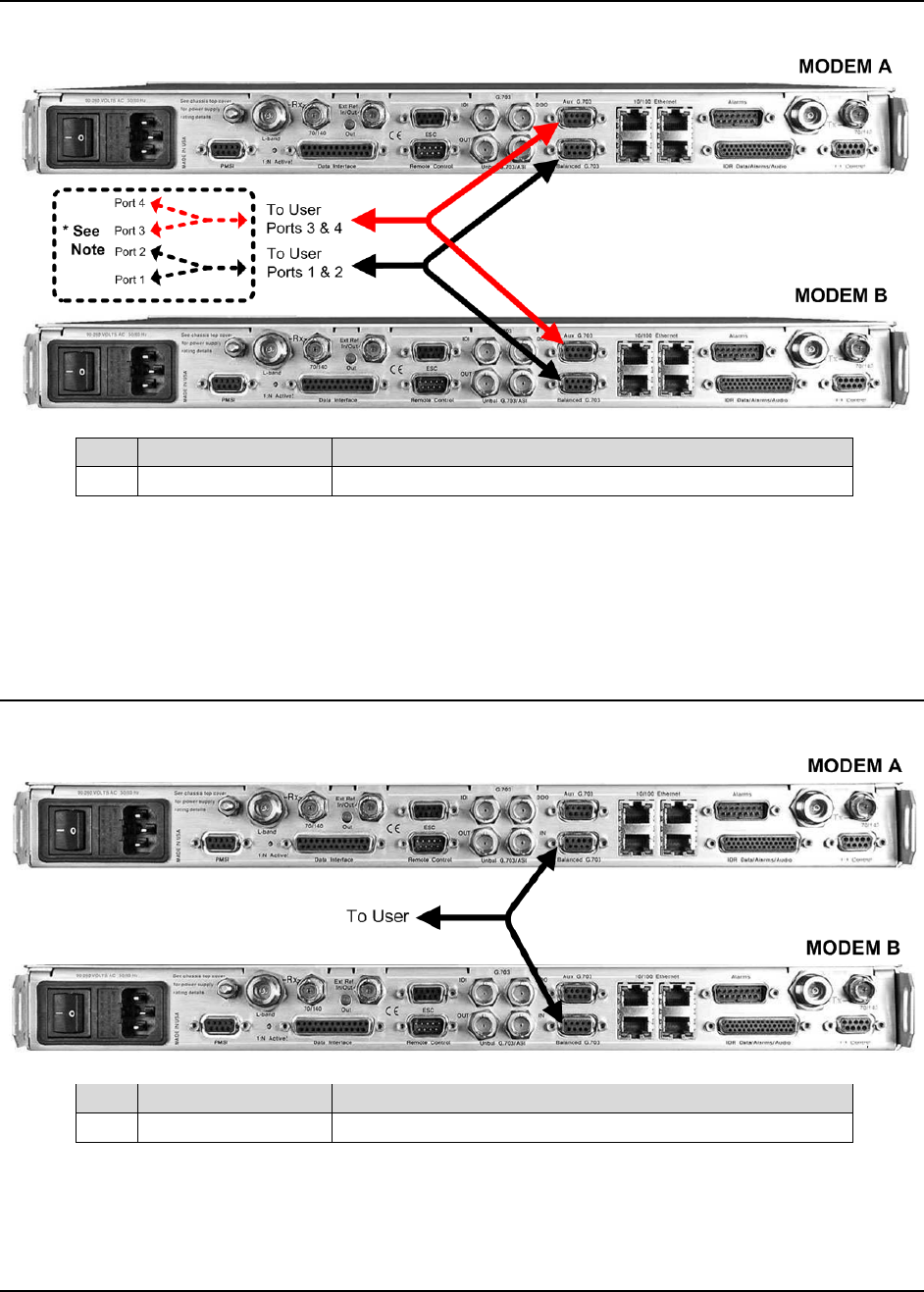

Figure 4-6. CDM-625 Quad E1 1:1 Example

Note: Optional adapter cables may be purchased from Comtech EF Data to adapt the Balanced

G.703 or Auxiliary G.703 DB-9F connections to either a standard DB-15F connector pair (CEFD

P/N CA-0000163) or an RJ-48F connector pair (CEFD P/N CA-0000164). Either cable plugs into

the single ‘To User’ connector side of each CA-0000071 ‘Y’ Splitter cable used.

4.2.3.5 G.703 Balanced Interface Example

QTY Part No. Description

2 CA-0000071 Cable – 1:1 ‘Y’ Splitter, (2X) DB-9M Æ DB-9F, 8”

Figure 4-7. CDM-625 G.703 Balanced 1:1 Example
