3–1

Chapter 3. REAR PANEL

CONNECTORS

3.1 Rear Panel Overview

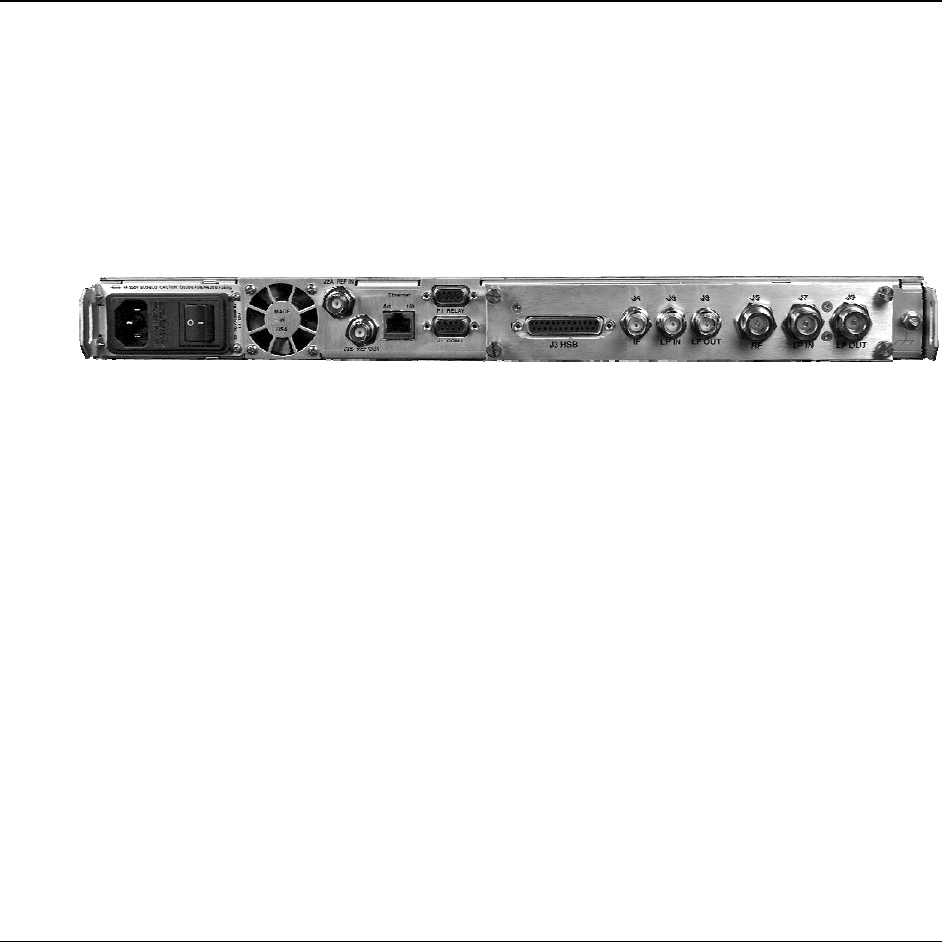

Figure 3-1 shows the UT-4500-A Series Upconverter rear panel and its accessible connectors.

This example depicts a UT-4505-A Upconverter with a Transmit Switch Module, or TSM,

installed.

Table 3-1 s

ummarizes these connectors, which provide all necessary external connections

between the upconverter and other equipment. Detailed information about each connector

follows.

Figure 3-1. UT-4500-A Rear Panel
