UT-4500-A Series Upconverters Revision 0
Appendix B MN-UT4500A
B–4

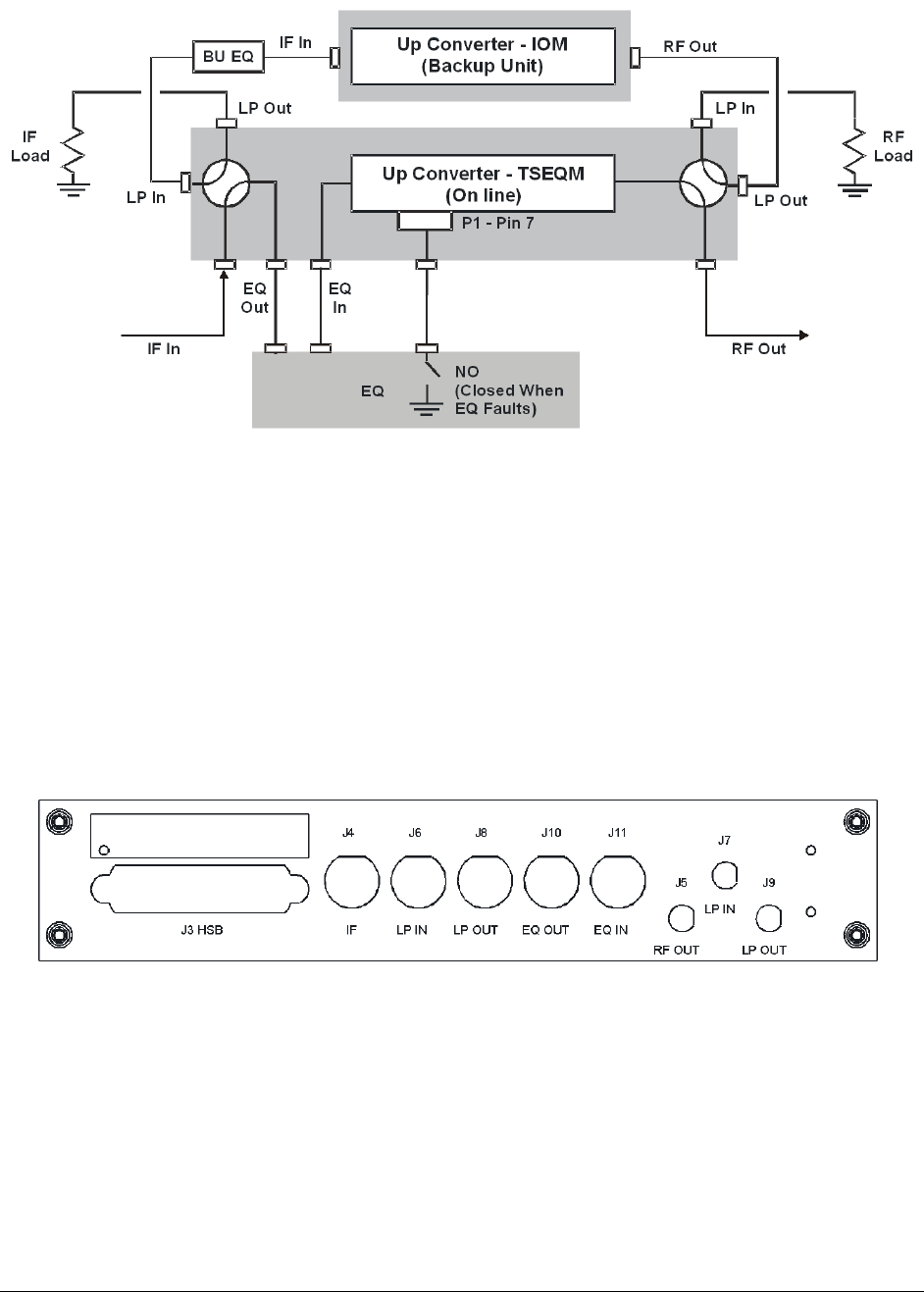

Figure B-3. 1:1 Redundant Configuration Diagram – Single Source RF Input with IOM-XX and
TSEQM-XX Installed
Figure B-4. TSEQM Connection Locations
