UT-4500-A Series Upconverters Revision 0
Appendix B MN-UT4500A
B–12

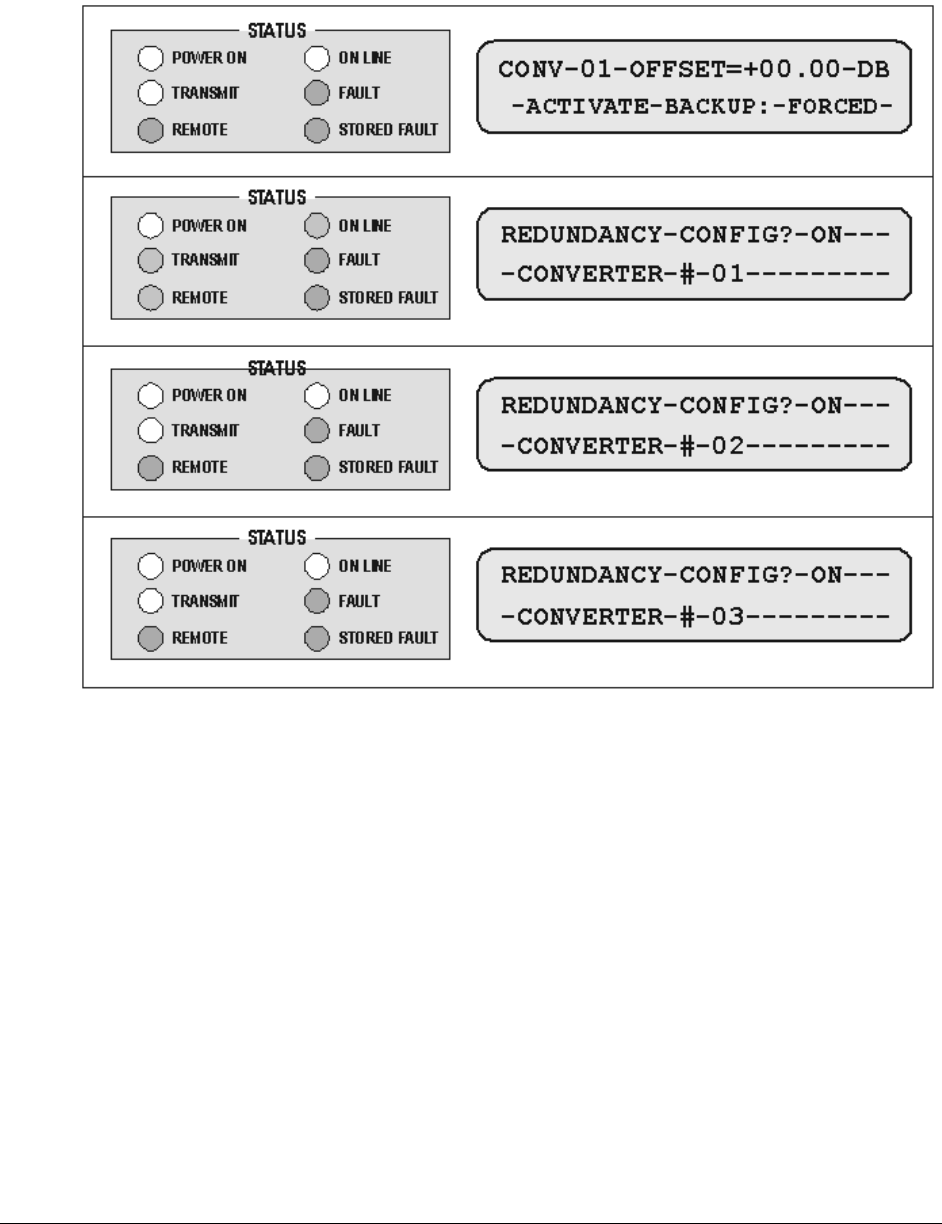

Figure B-13 shows the front panel displays after the backup has forced upconverter 1 offline.
Note that the ON LINE LED allows the user to tell whether the backup is currently active and
which upconverter is being bypassed.
Figure B-13. Forced Backup of Converter #1
