LPOD C-, X-, or Ku-Band Outdoor Amplifier / Block Up Converter (BUC) MN-LPOD

Updating Firmware Revision 10

3–8

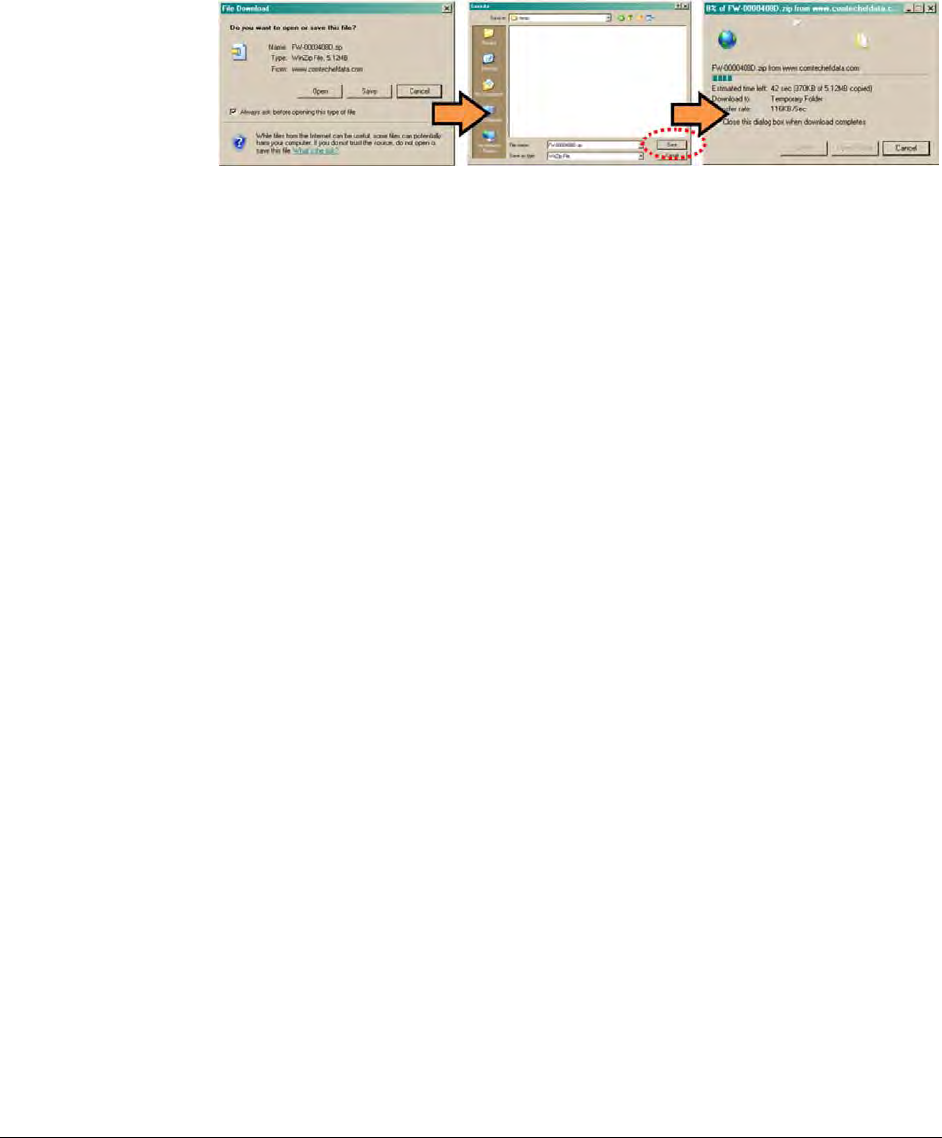

o Click [Open] to turn over file extraction to the user-supplied utility program. Be

sure to extract the firmware files to the ‘temp’ folder created earlier.

o Click [Save] to open the ‘Save As’ window. Be sure to select and [Save] the

archive *.exe or *.zip file to the ‘temp’ folder created earlier.

Otherwise, click [Cancel] to quit and exit the file download process.

2) Next, extract the firmware files from the archive file.

• (If not already done with File Download > [Open]) Extract the firmware files from the

downloaded *.exe or *.zip archive file with the user-supplied utility program:

o Double-click on the archive file name, and then follow the prompts provided by the

user-supplied utility program. Extract, at a minimum, two files:

 FW-0000078x_LPOD_#_#_#.bin – The Firmware Bulk image file (where ‘x’

denotes the revision letter and ‘#_#_#’ denotes the firmware version number),

and

 ReleaseNotes_LPOD-PSx_v#-#-#.pdf – The Firmware Release Notes PDF file

(where ‘#-#-#’ denotes the firmware version number).

3) Confirm availability of the firmware files in the temporary folder.

There are several ways you may view the contents of the temporary folder on a Windows-

based PC:

A. From the Windows Desktop:

• Double-left-click the ‘temp’ folder saved to the Windows Desktop.

• Use Windows Explorer to locate, and then double-left-click the ‘temp’ folder.

• Use the ‘Browse‘ window ([Start] > ...Run > [Browse]) to locate, and then double-

click the ‘c:\temp’ folder.

B. Using Command-line:

• Type “cd c:\temp” at the Command-line prompt to change to the temporary

directory created earlier using Command-line.
