Chapter 3 - Using the Command Line Interface (CLI) 3-43
Vipersat Configuration
In a fixed environment, enabling this feature will allow an operator to use the
VMS to maintain the route tables for the Hub TDM.

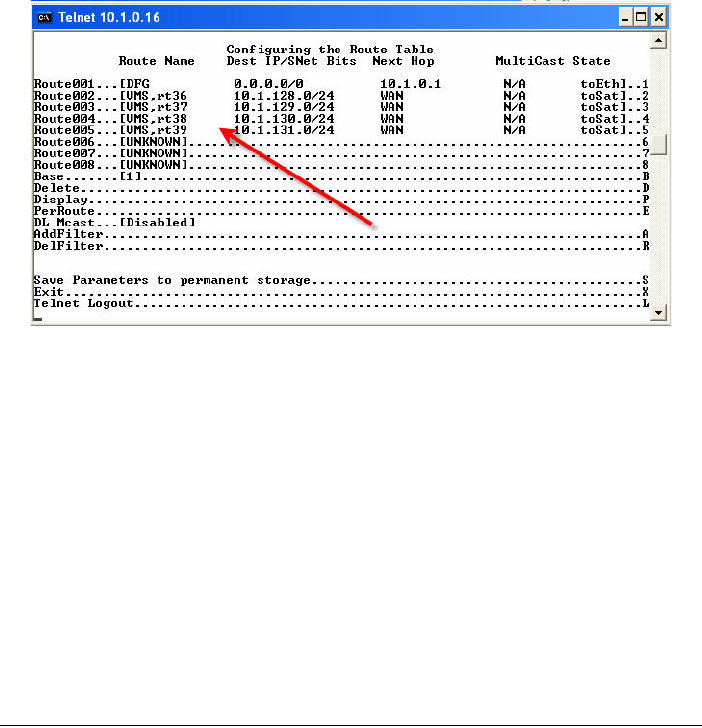

Figure 3-54
VMS Routes in Route Table
Enter F at the command prompt to toggle this setting.
SOTM Mode
This menu item appears for Remote modems only.
When a Remote modem is utilized in a SOTM application, it is under the
control of the ROSS. Should the ROSS fail, control of the modem can be
regained by disabling the SOTM mode by entering F at the command prompt.
Note that this command is an override only; it is not an enable/disable toggle.
Unit Role
The Unit Role configuration determines whether the target CDM-570/570L is
to function as a Remote or as a Hub in the Vipersat satellite network. From the
Vipersat Configuration screen (figure 3-6), enter R to display the dialog
shown in figure 3-55.
