Appendix D - Network Migration D-9
Firmware Upgrade

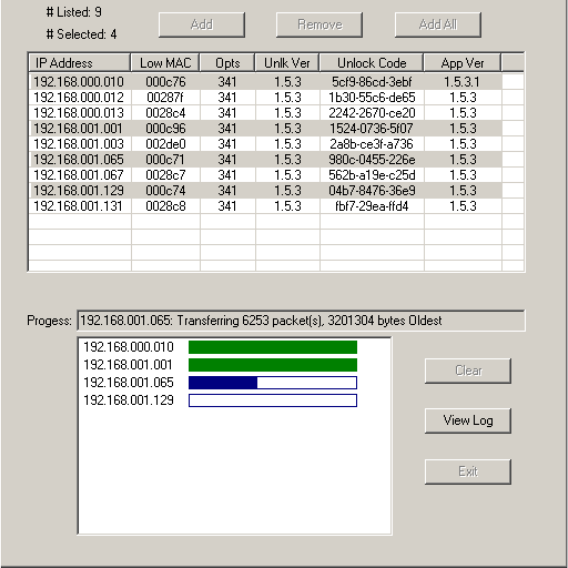

Figure D-8
Progress Status, Put Application
Save and Reboot to Latest
1. Using either VMS or CLI, Save the parameters for each unit to flash. Then,
using Vload, reboot with Hard Reset to Latest.
