CDM-840 Remote Router Revision 2
Appendix C MN-CDM840
C–11
allows the packets coming from the CDD-880s to be associated with the correct CTOG-250, as
long as you enable MAC learning on the attached Ethernet Switch.

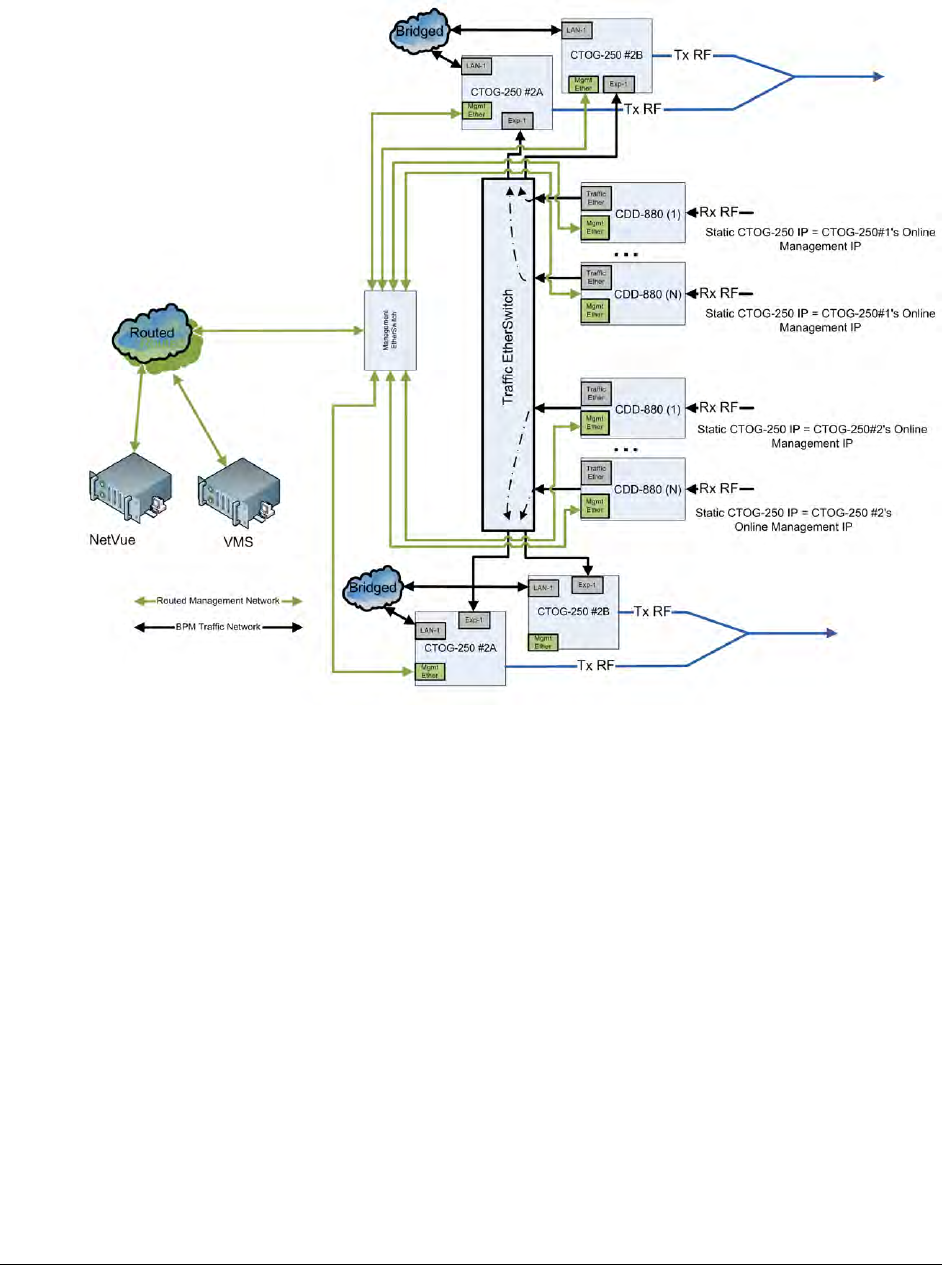

Figure C-10. Multiple CTOG-250 Outbounds in Redundant Mode
