CDM-840 Remote Router Revision 2
Appendix C MN-CDM840
C–10
If you have multiple Advanced VSAT outbound carriers at a single Hub, Comtech EF Data
recommends the deployment architecture shown in Figure C-9.

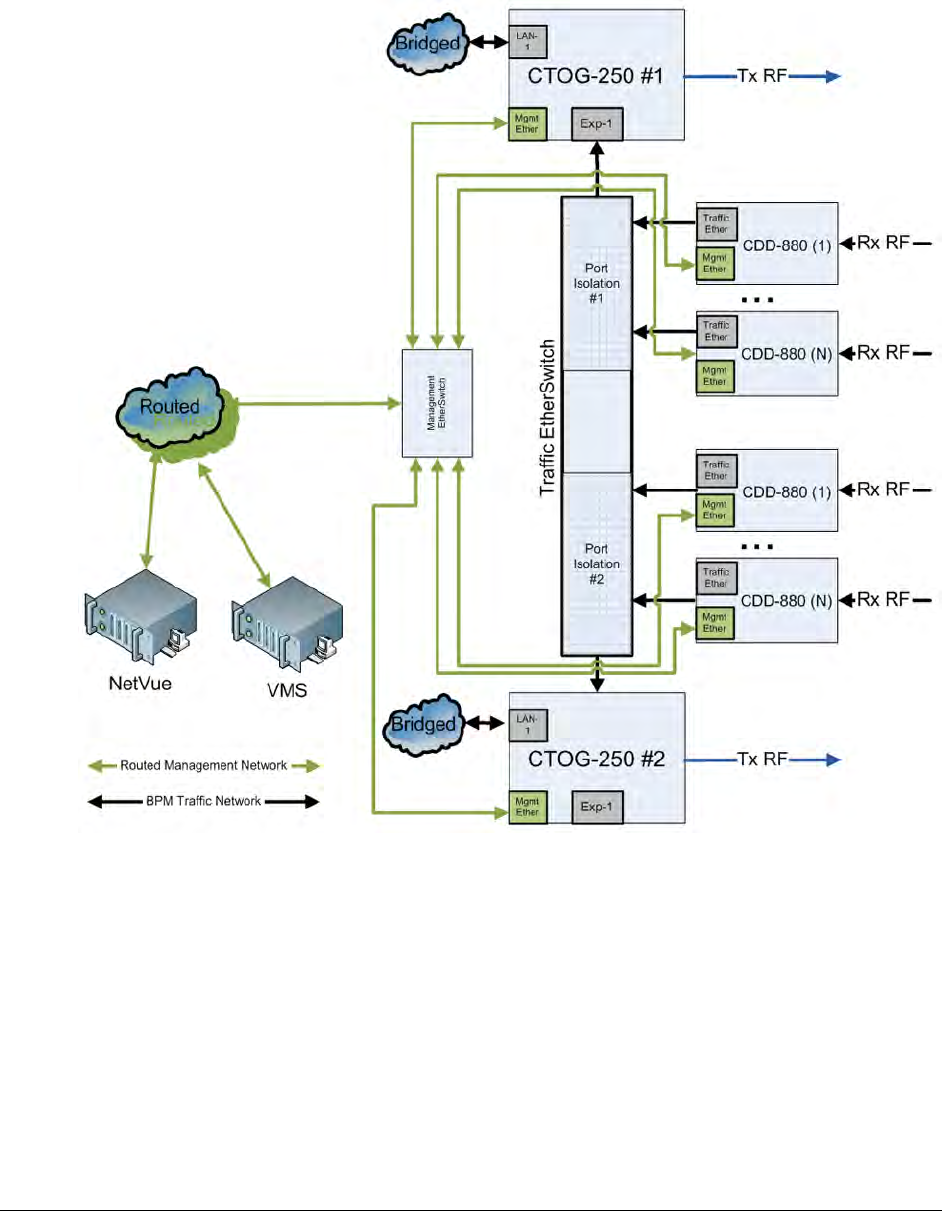

Figure C-9. Hub Network Configuration
If you have multiple Advanced VSAT outbound carriers at a single Hub, Comtech EF Data
recommends the deployment architecture shown in Figure C-10. In this case, there is no need
for port isolation for each of the respective outbound networks; however, you MUST configure
the “Static CTOG-250 IP” that is found on the CDD-880 Configuration | Network | BPM web
page.
Once you set this value, then the CDD-880 is automatically associated with the desired
CTOG-250. The CDD-880 and CTOG-250 exchange a proprietary handshake mechanism that
