KPA Ku-Band Indoor Solid-State Power Amplifier Revision 1

Ethernet Management MN/KPA.IOM

6–18

6.5.4.4.3 Status | FETs page

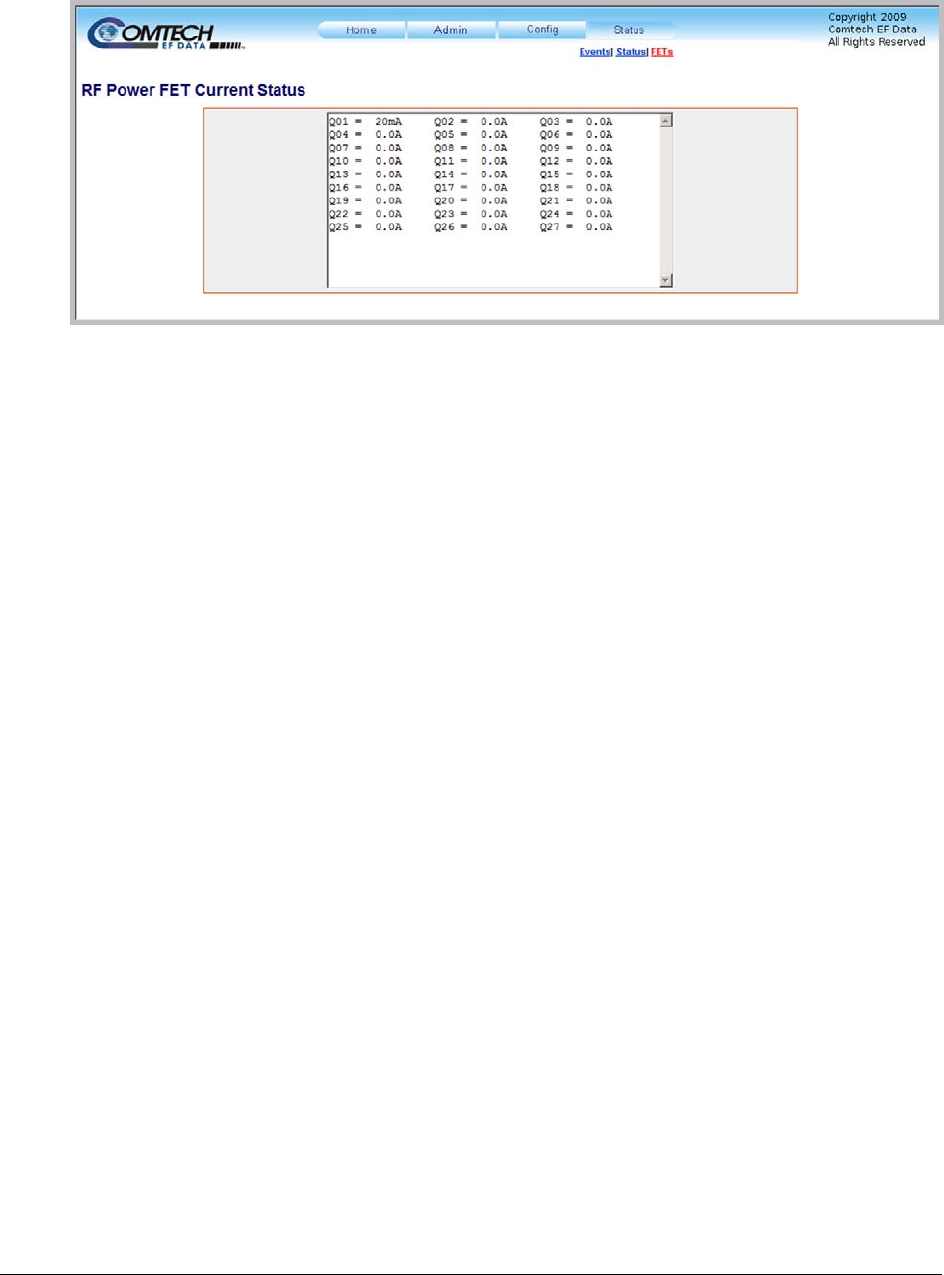

Figure 6-10. Status | FETs page

The read-only ‘Status | FETs’ page (Figure 6-10) provides the user with the

means to monitor

the current operating status of the KPA’s RF Power Field Effect Transistors (FETs).

Note the following:

• For KPA-040 only – RF FET Q01 through Q14.

• For KPA-020IN/-080/-100 – RF FET Q01 through Q27.
