KPA Ku-Band Indoor Solid-State Power Amplifier Revision 1

Front Panel Operation MN/KPA.IOM

5–5

5.3 SELECT: (Main) Menu

SELECT: Config Monitor

Utility FrontPanel (◄ ► E)

Figure 5-4 illustrates the hierarchal structure of the front panel principle menu tree from the

SELECT: menu on down. The amplifier commands are in a tree structured menu format

designed for access and execution of all control functions, and to prevent the execution of an

invalid entry by the operator.

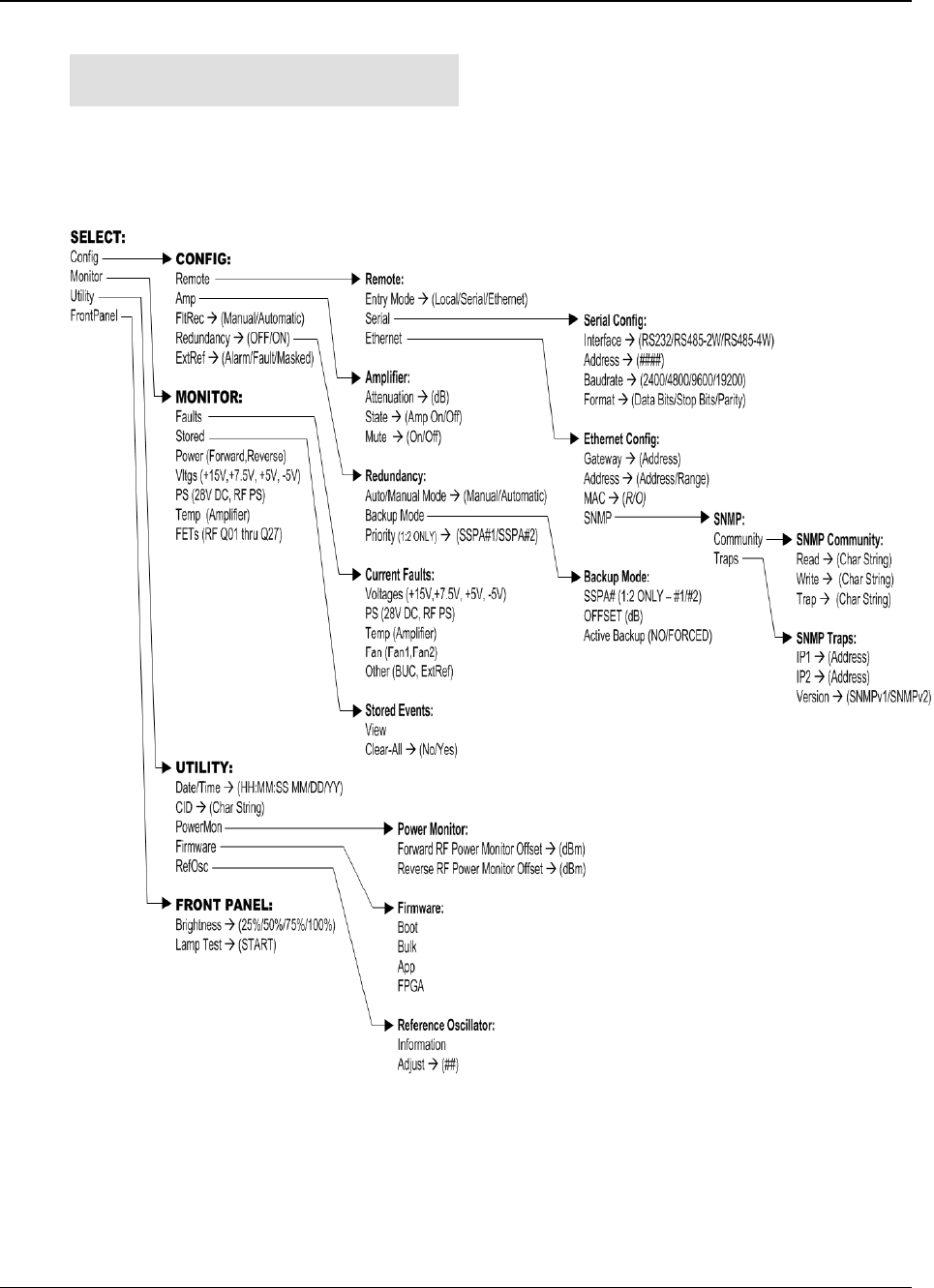

Figure 5-4. KPA Principle Menu Tree

The SELECT: menu screen is immediately accessible from the opening screen by pressing

ENTER or CLEAR or, from any other nested menu, by repeatedly pressing CLEAR as needed,

until it reappears.
