Ku-Band Satellite Transceiver Revision 9

Single-Thread Equipment Mounting MN/KST2000AB.IOM

C–5

C.2.1.2 Converter Spar Arm Mounting Instructions

1. Position the Converter unit against the spar arm of the satellite dish and bolt the

two spar support brackets to the Converter unit brackets as shown in

Figure C-2

Utilize four each 1/4x-20x1” bolts, 1/4 split, and 1/4” flat washers.

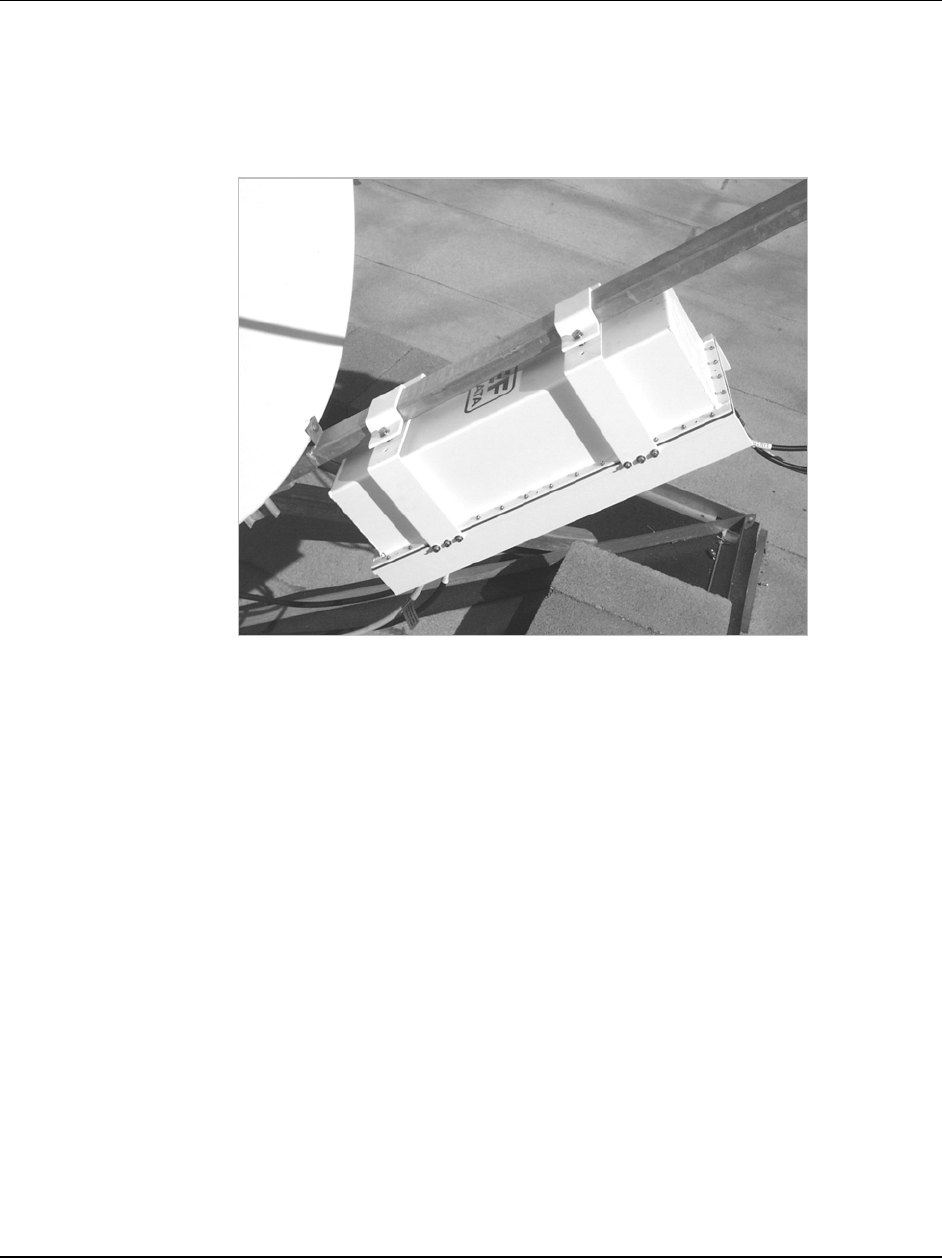

Figure C-2. Typical Converter Unit Installation on Spar
