DMD1050 Satellite Modem Board Web Browser
MN-DMD1050 7–22
Revision 9
7.3.4.2 Receive Menu
The Receive menu contains sub menus; General | IF, Data, Reed Solomon and ODU-LNB.
Receive General | IF Menu

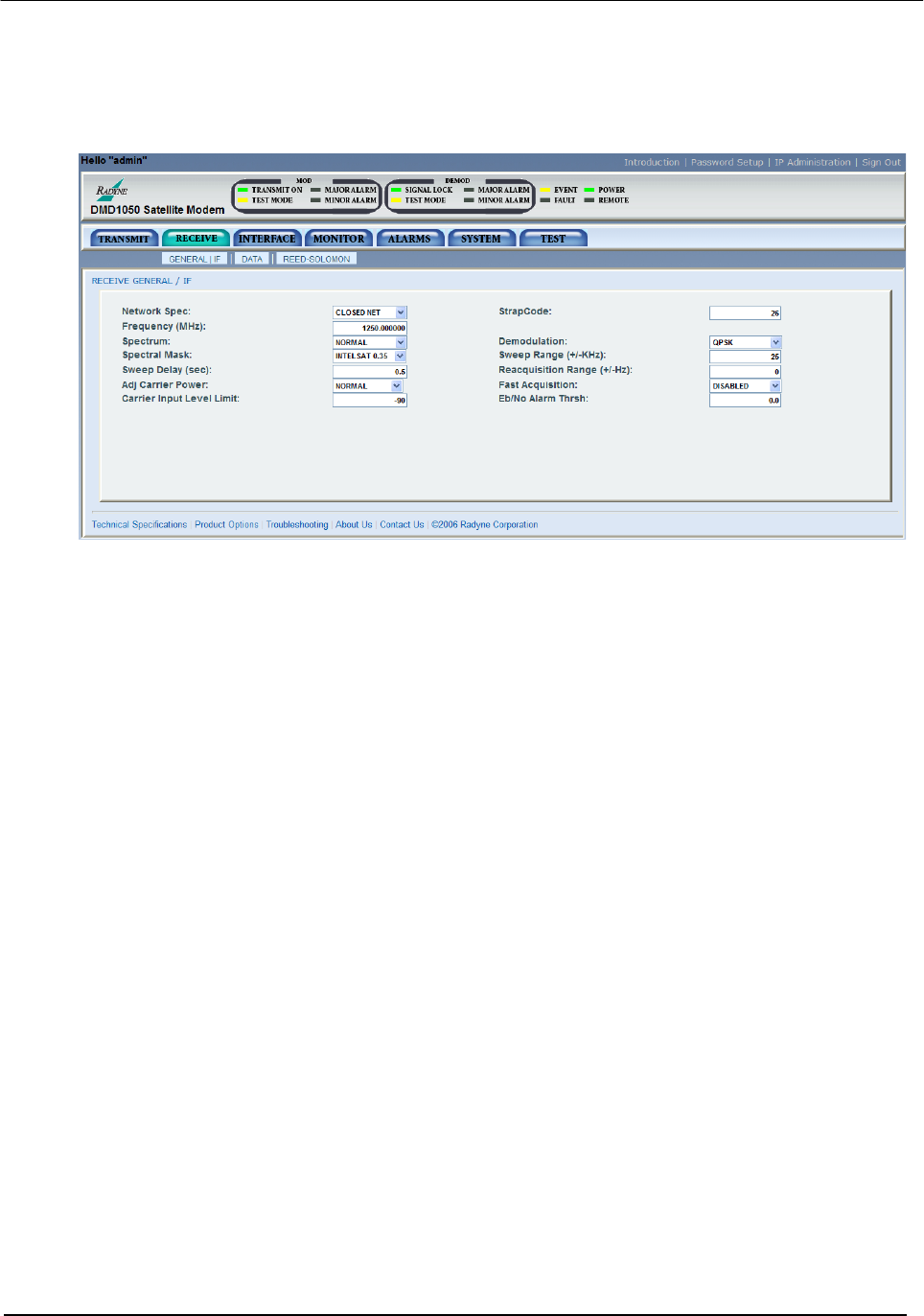

Figure 7-13. Receive General | IF Menu
Network Spec: {CLOSED NET, DVB SAT}
Supports IDR and IBS Framing. Modes in Closed Net
The Mode Command sets a number of parameters within the
modem to meet a set specification. The purpose is to eliminate
keystrokes and potential compatibility problems. Additionally,
data rates not covered by the given mode of operation will not be
allowed. If the mode of operation is selected after the data rate
has been entered, then the data rate must be compatible with the
desired mode of operation or the mode will not be allowed. The
following parameters are set and cannot be changed while the
unit is in the given mode of operation:
