Appendix F Revision 2
CDM-760 Advanced High-Speed Trunking Modem MN-CDM760
F–17

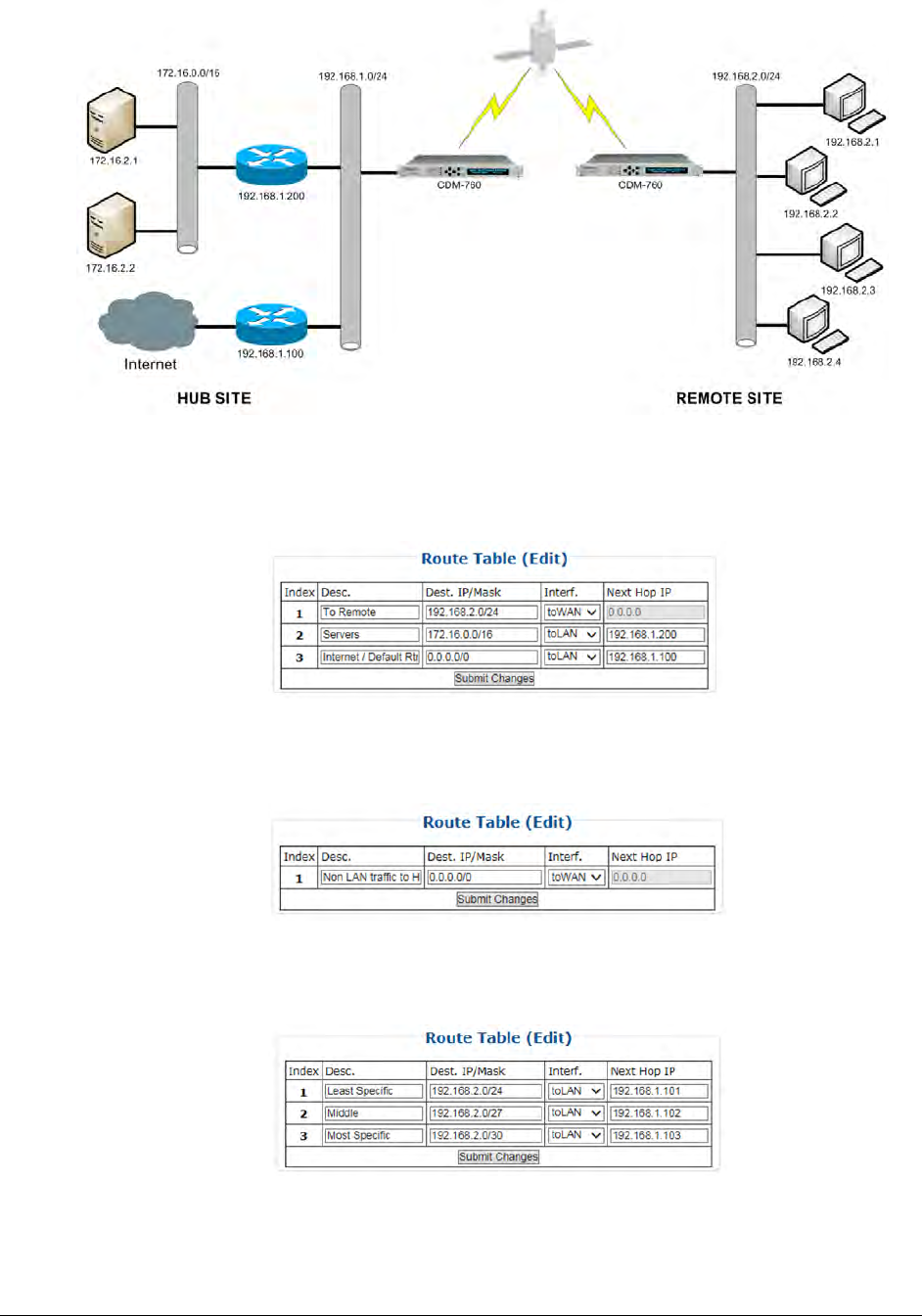

Figure F-6. Point-to-Point Network Example
The Route Table, as viewed on the CDM-760 HTTP Interface Configuration | Routing | Routes
page for the Hub Site modem, should appear as follows:
The Route Table, as viewed on the CDM-760 HTTP Interface Configuration | Routing | Routes
page for the Remote Site modem, should appear as follows:
In cases where a packet may satisfy more than one route entry, the route with the most specific
entry will be chosen. The longer the bit mask, the more specific the route is. For example:
In this example, if a packet comes in from the WAN with a Destination IP Address of
192.168.2.1, it will be routed using to 192.168.1.103 using Route Index #3. Route 3 is the most
